New Rack Server – Part 2

After the Part 1, the new hardware it’s arrived and the rack is assembled.

CameraZOOM-20130830175924396 (Copia)

These are the specs:

  • CPU: INTEL CORE I3 IVY BRIDGE 3220T
  • RAM: 2X4GB KINGSTON HyperX DDR3-1600 CL9
  • MOTHERBOARD: ASUS P8H77-V LE
  • HDD: SANDISK SSD 64GB
  • PSU: AKASA VENUM POWER 550W
  • CPU COOLER: COOLER MASTER GEMINII M4

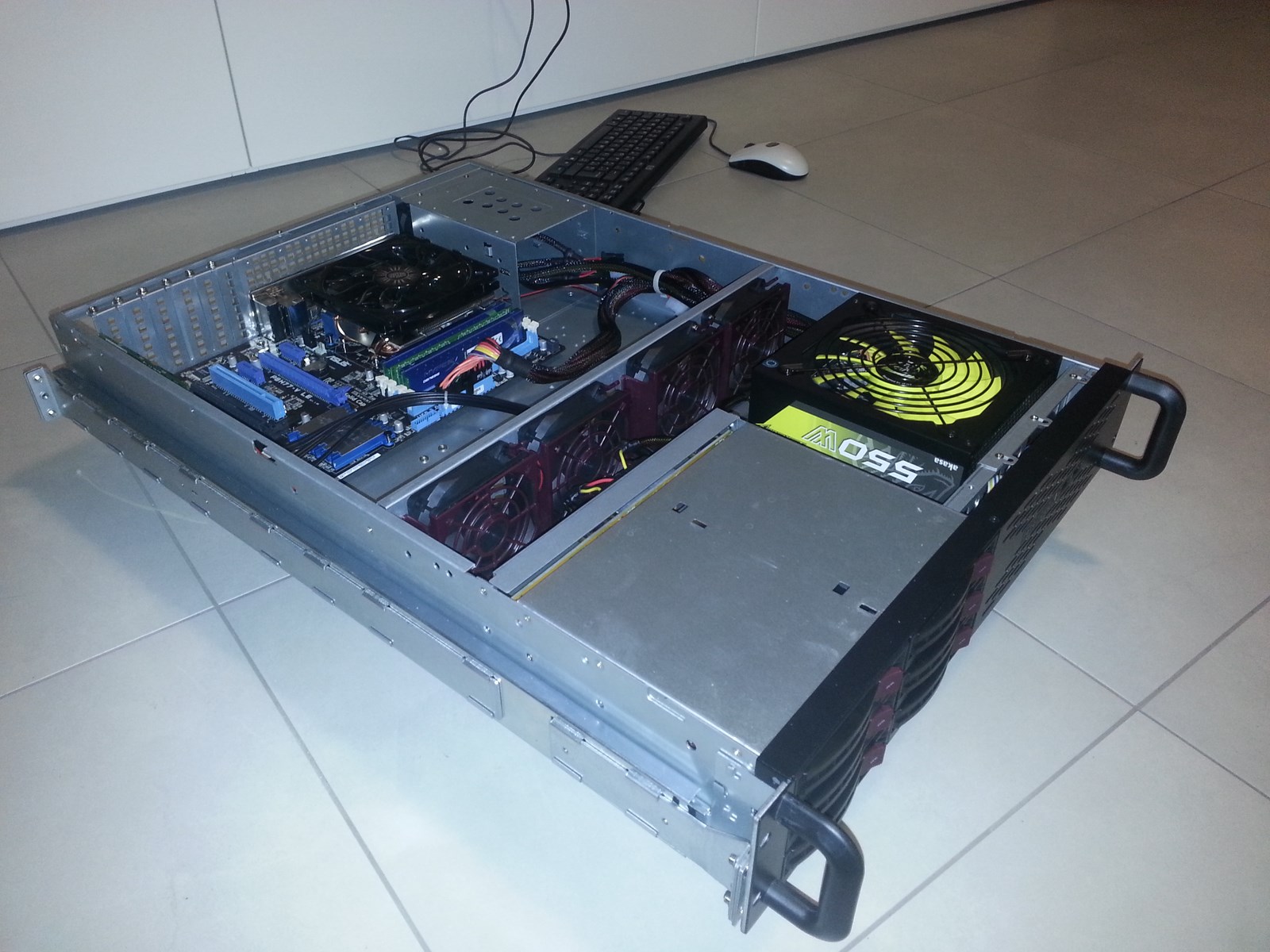

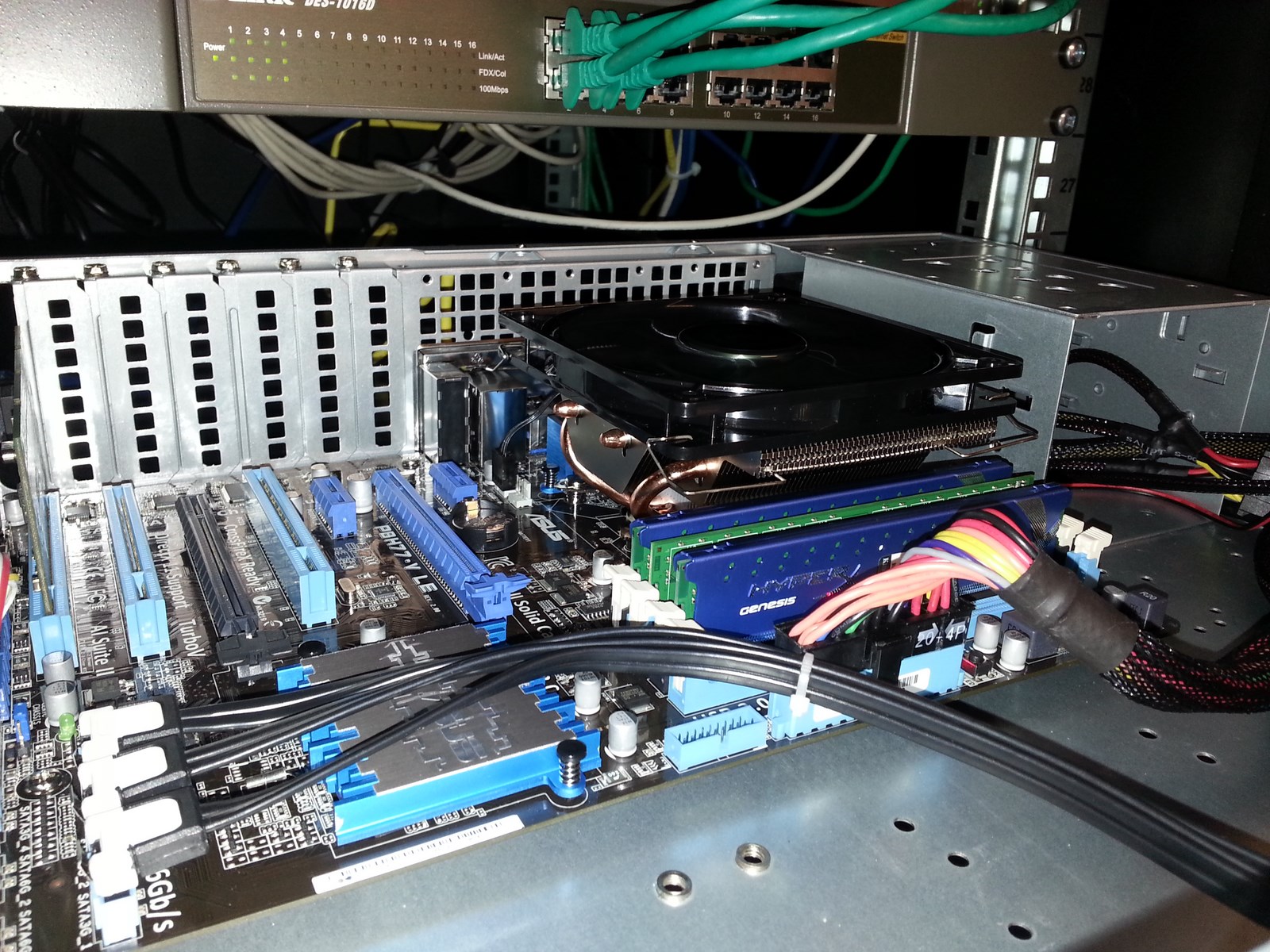

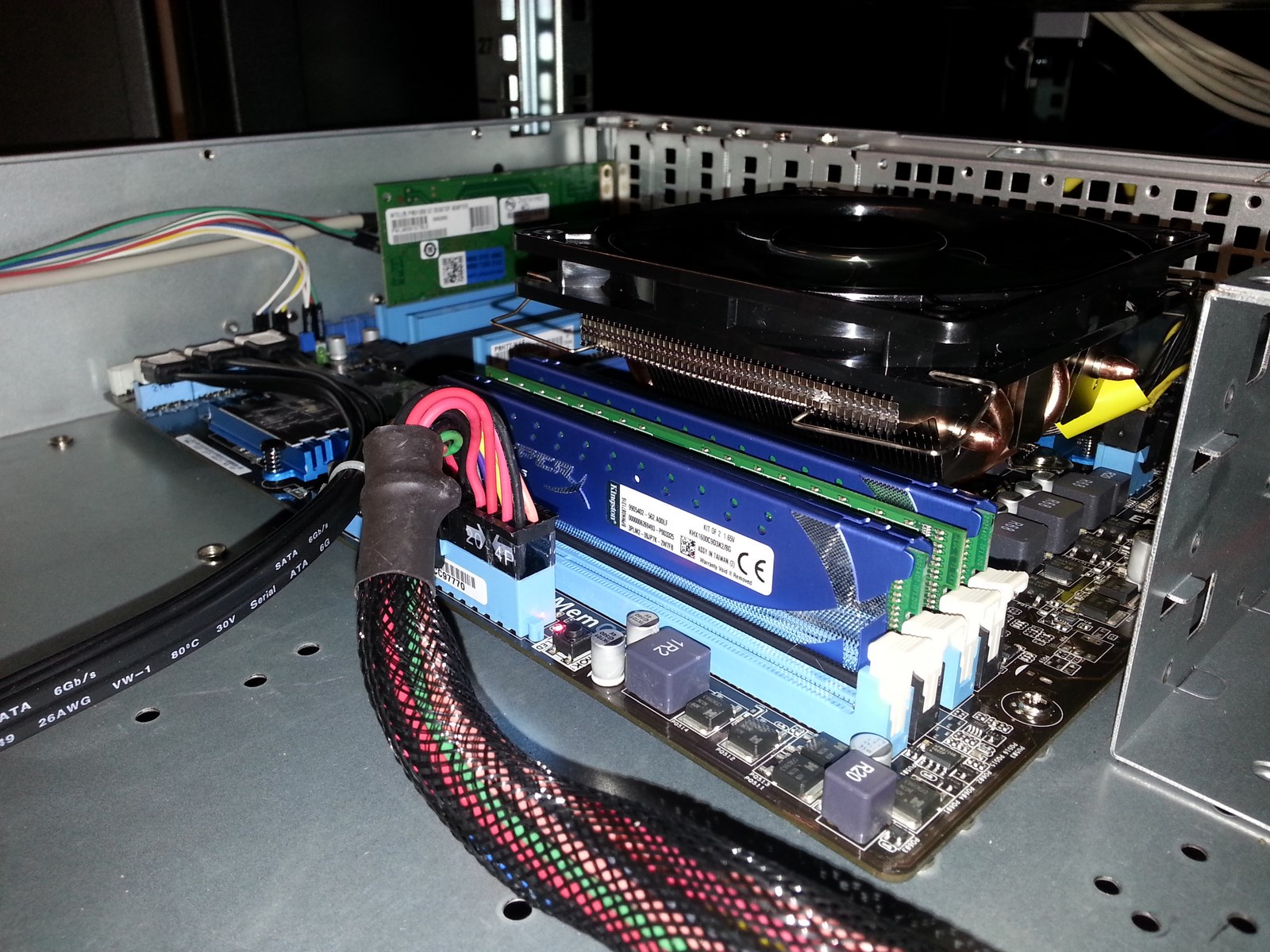

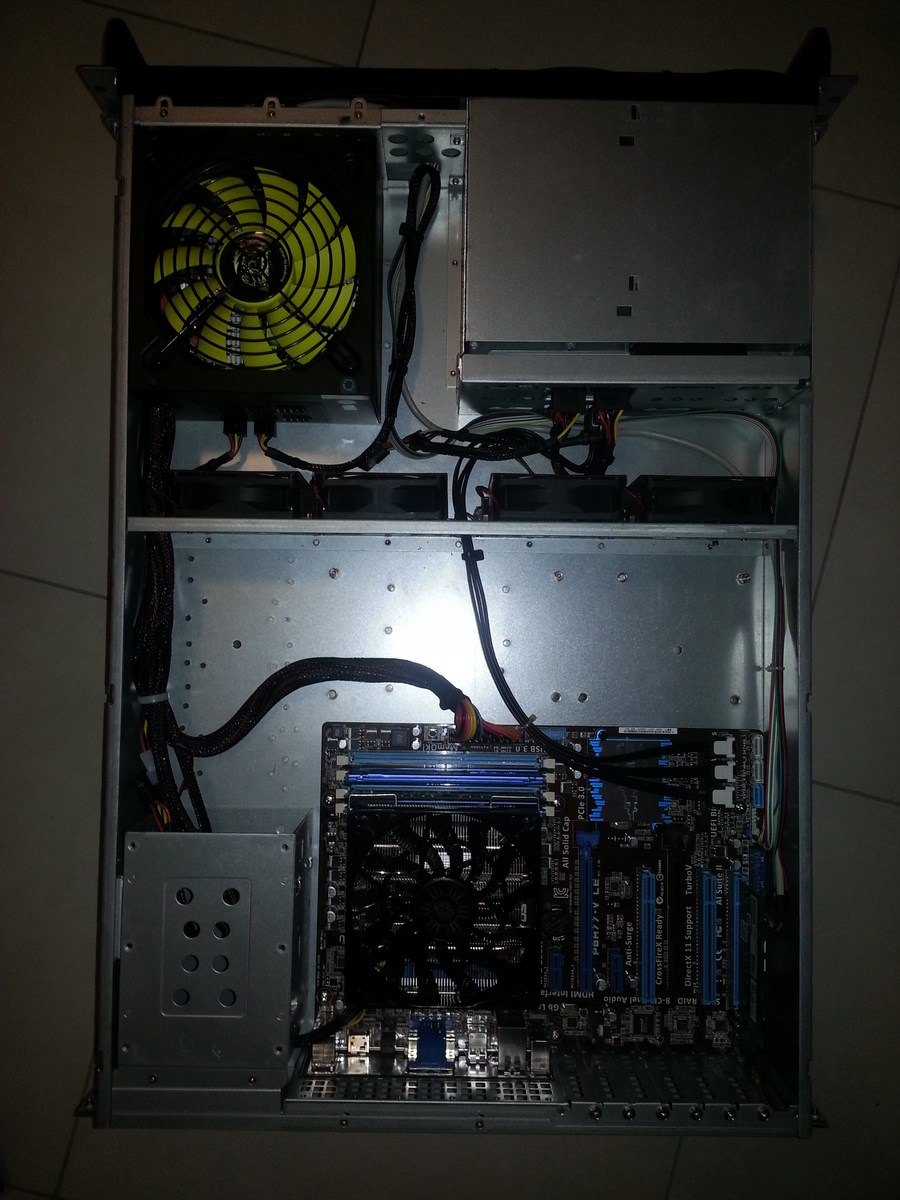

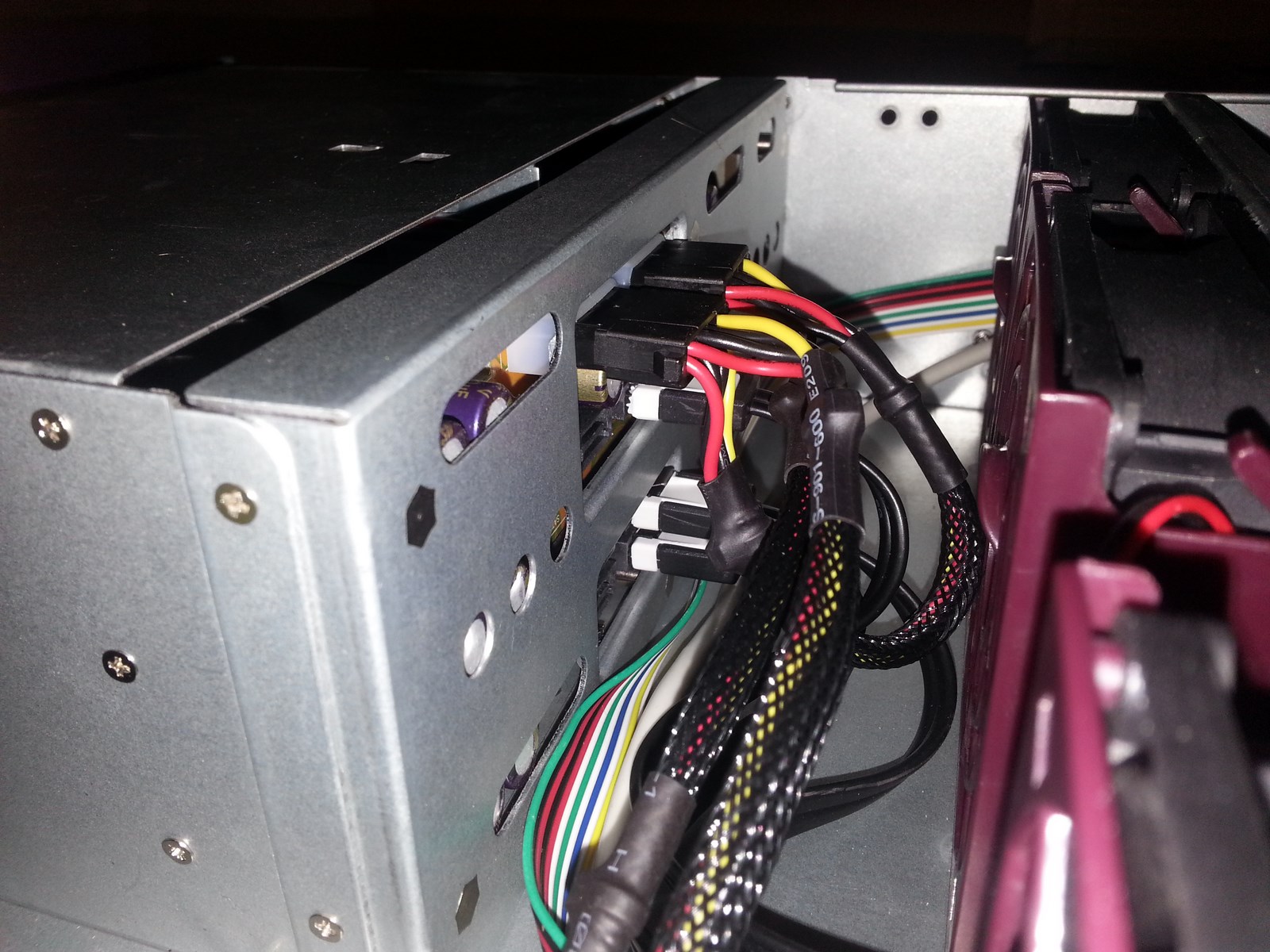

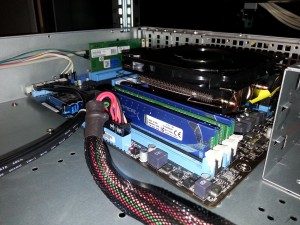

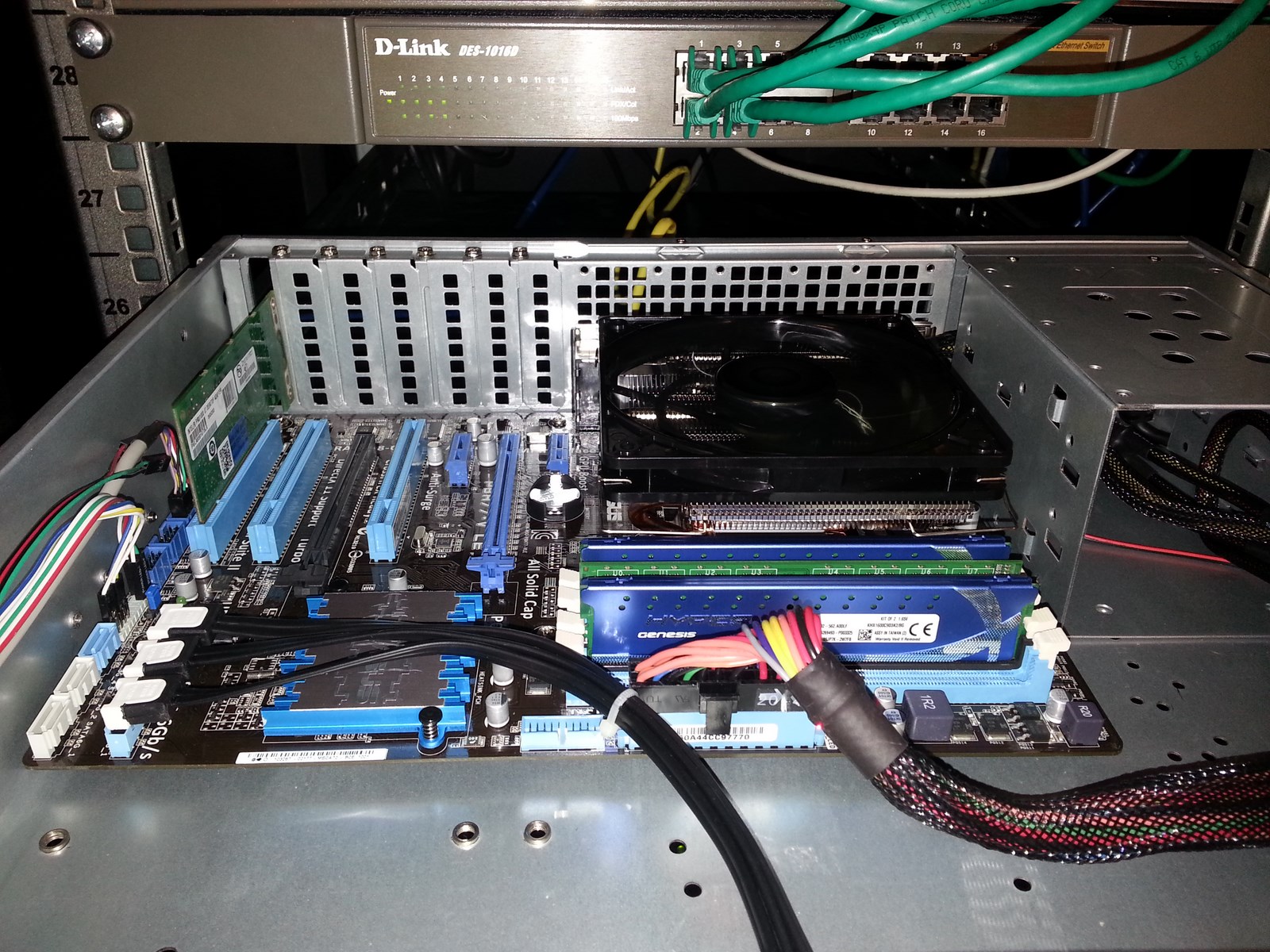

These are some pics during the assembly:

20130901_203046 (Copia) 20130901_203115 (Copia) 20130901_203544 (Copia) CameraZOOM-20130901222514544 (Copia) CameraZOOM-20130901222456224 (Copia) CameraZOOM-20130901222445054 (Copia)

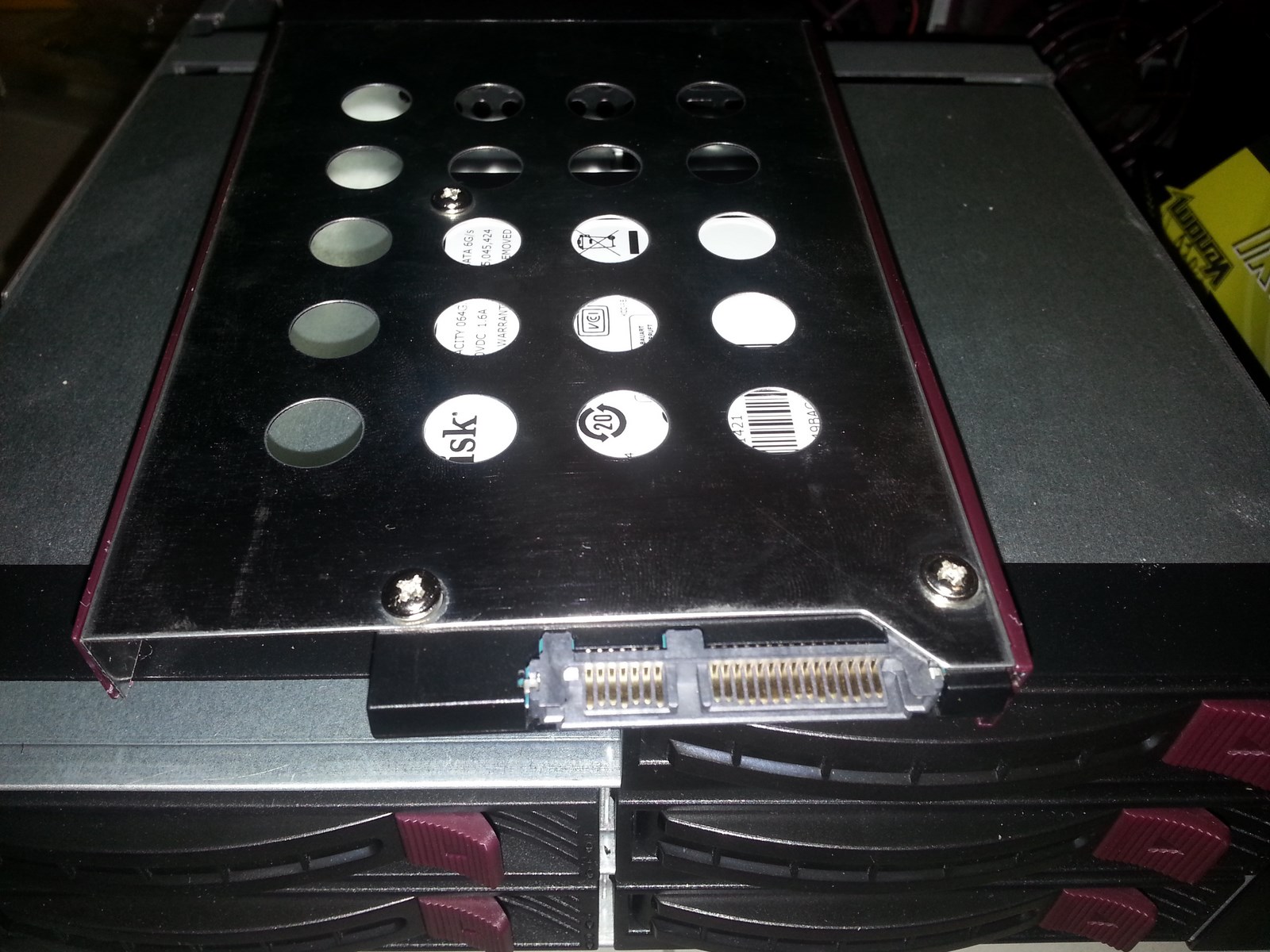

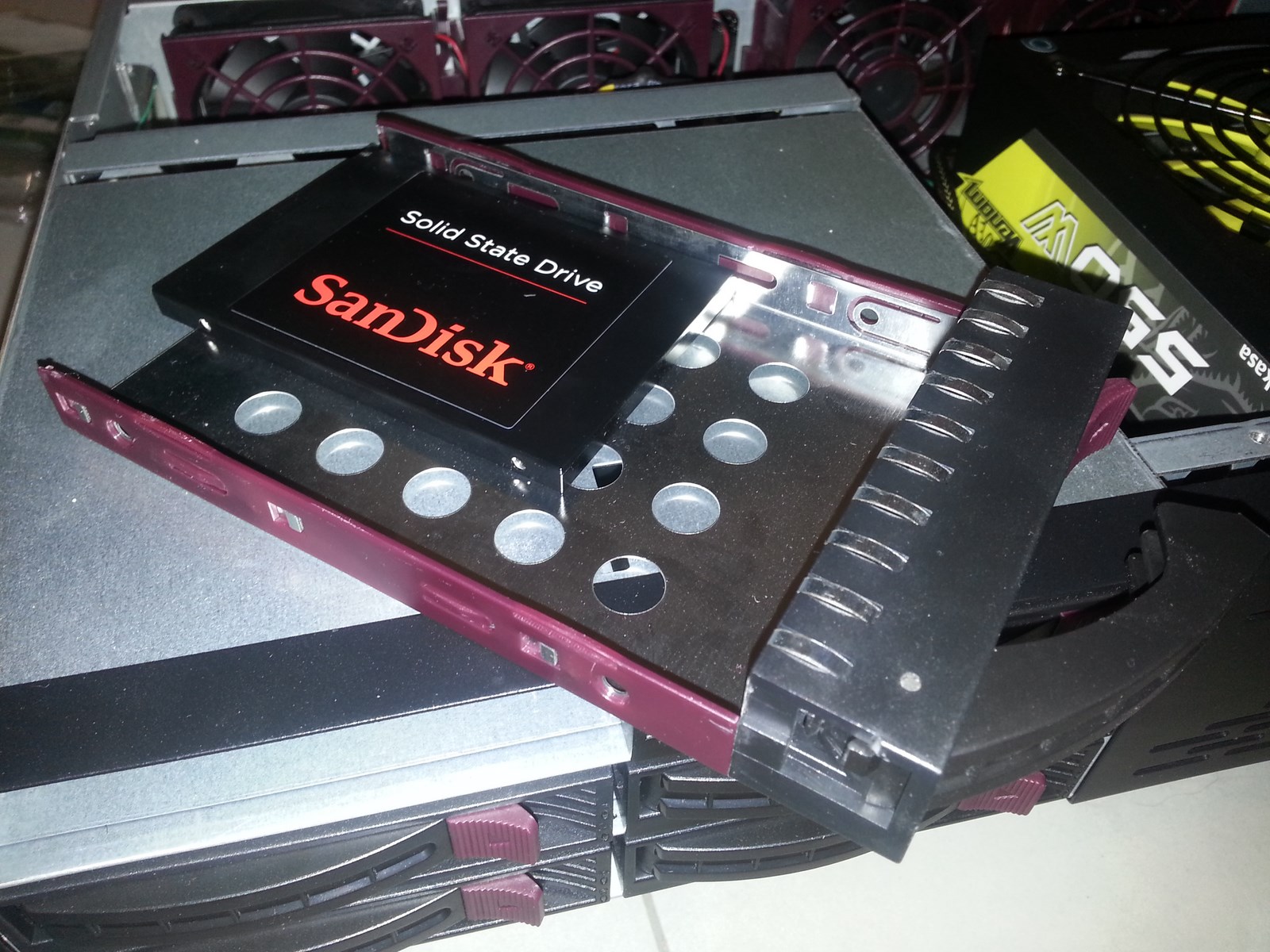

I appreciated some tricks of the case, like the support for mount 2.5” hdd in the hot swap:

20130901_201320 (Copia)20130901_201340 (Copia)

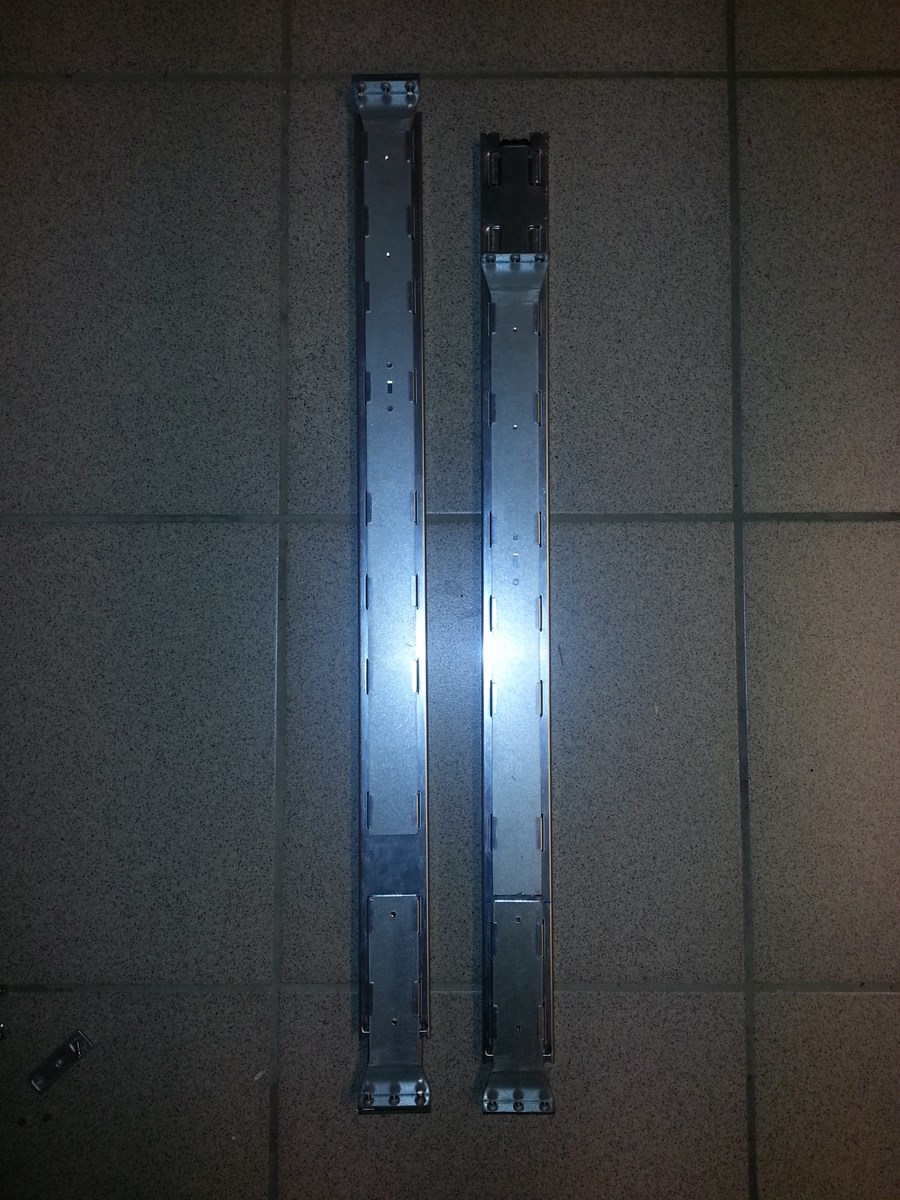

The rail kit included was too long, so i needed to modify it for can use it (original vs modified) :

20130901_212918 (Copia)

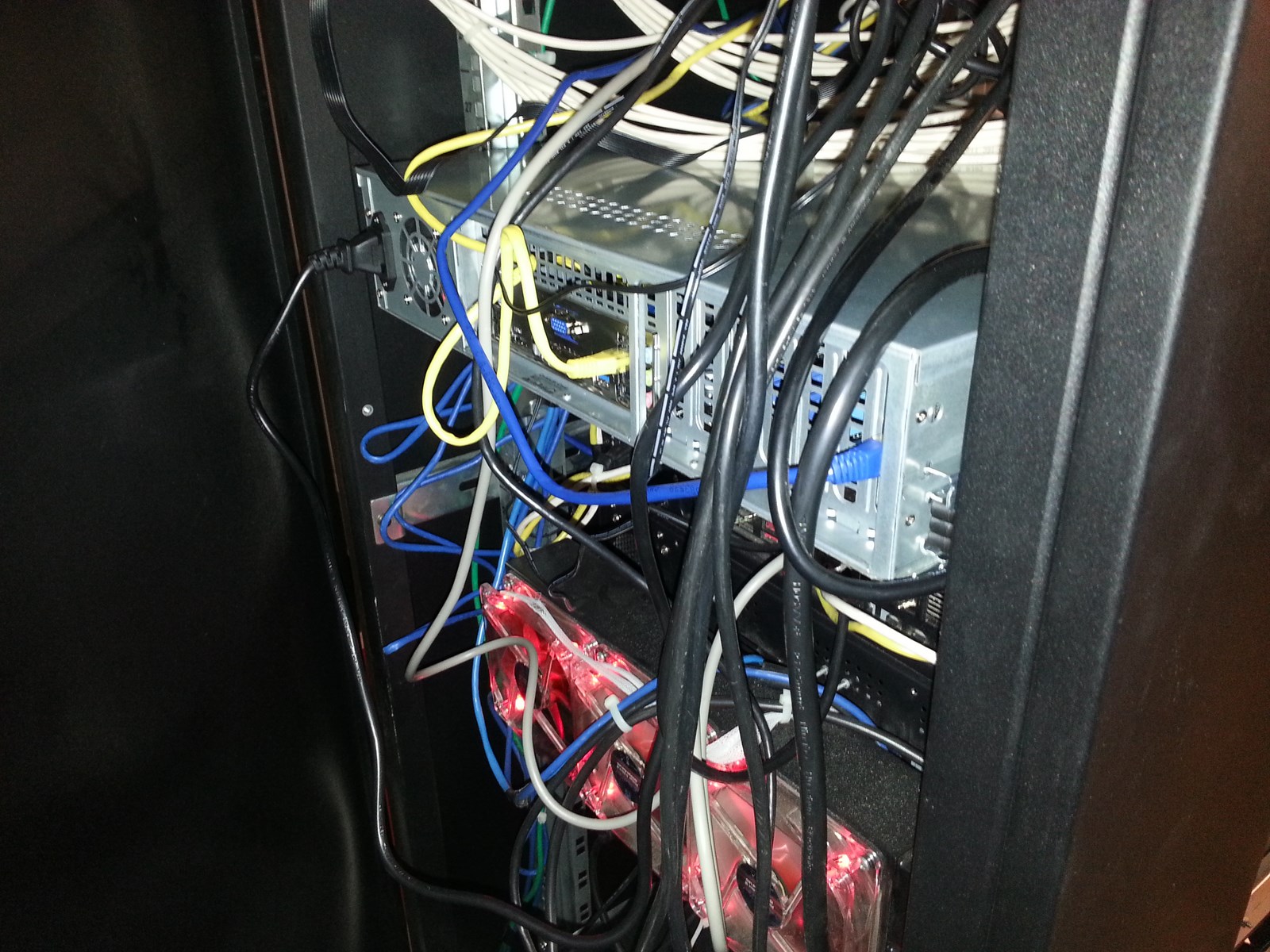

The case is very long, and fit in my cabinet a bit narrow:

20130901_221434 (Copia)

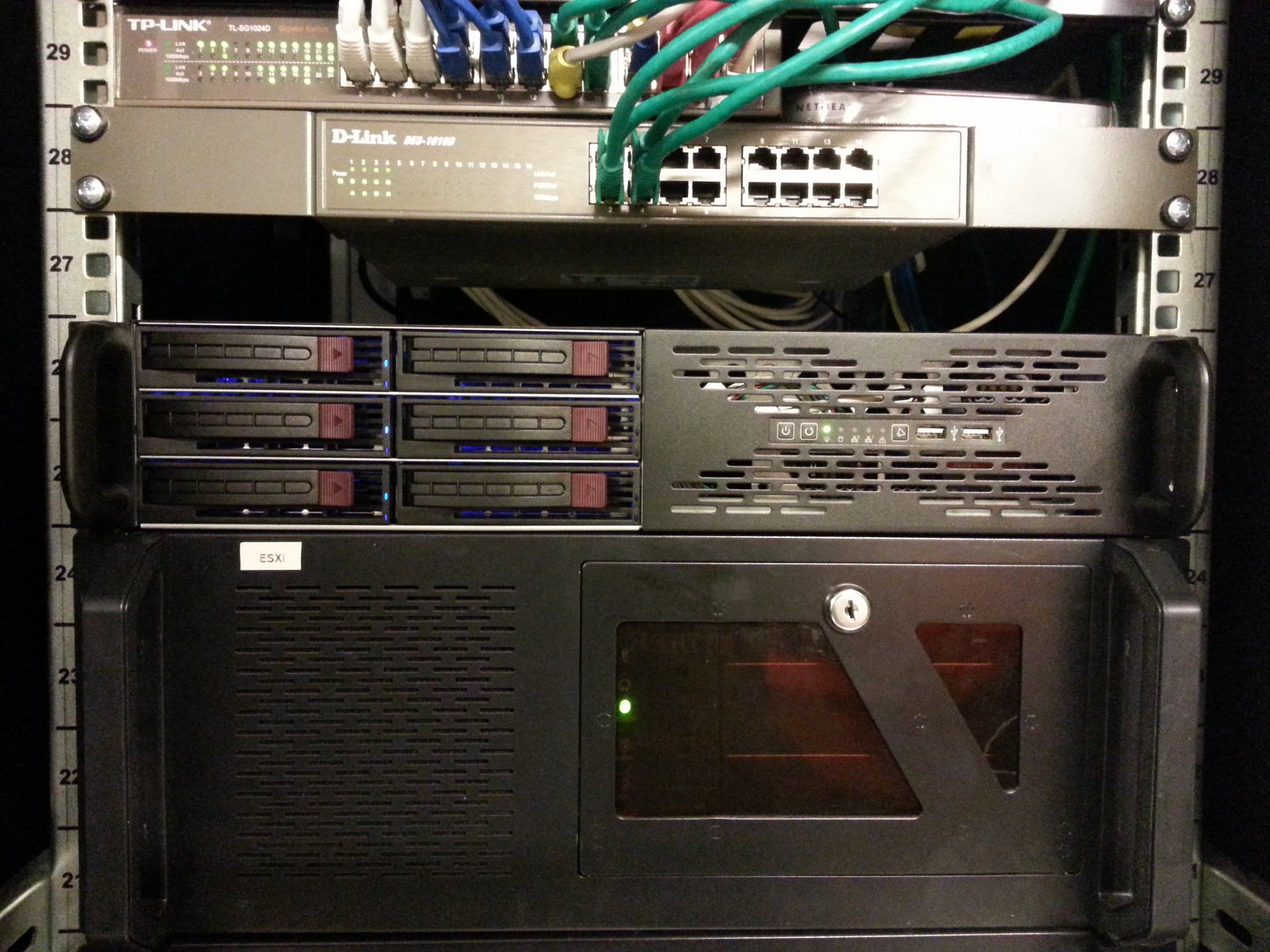

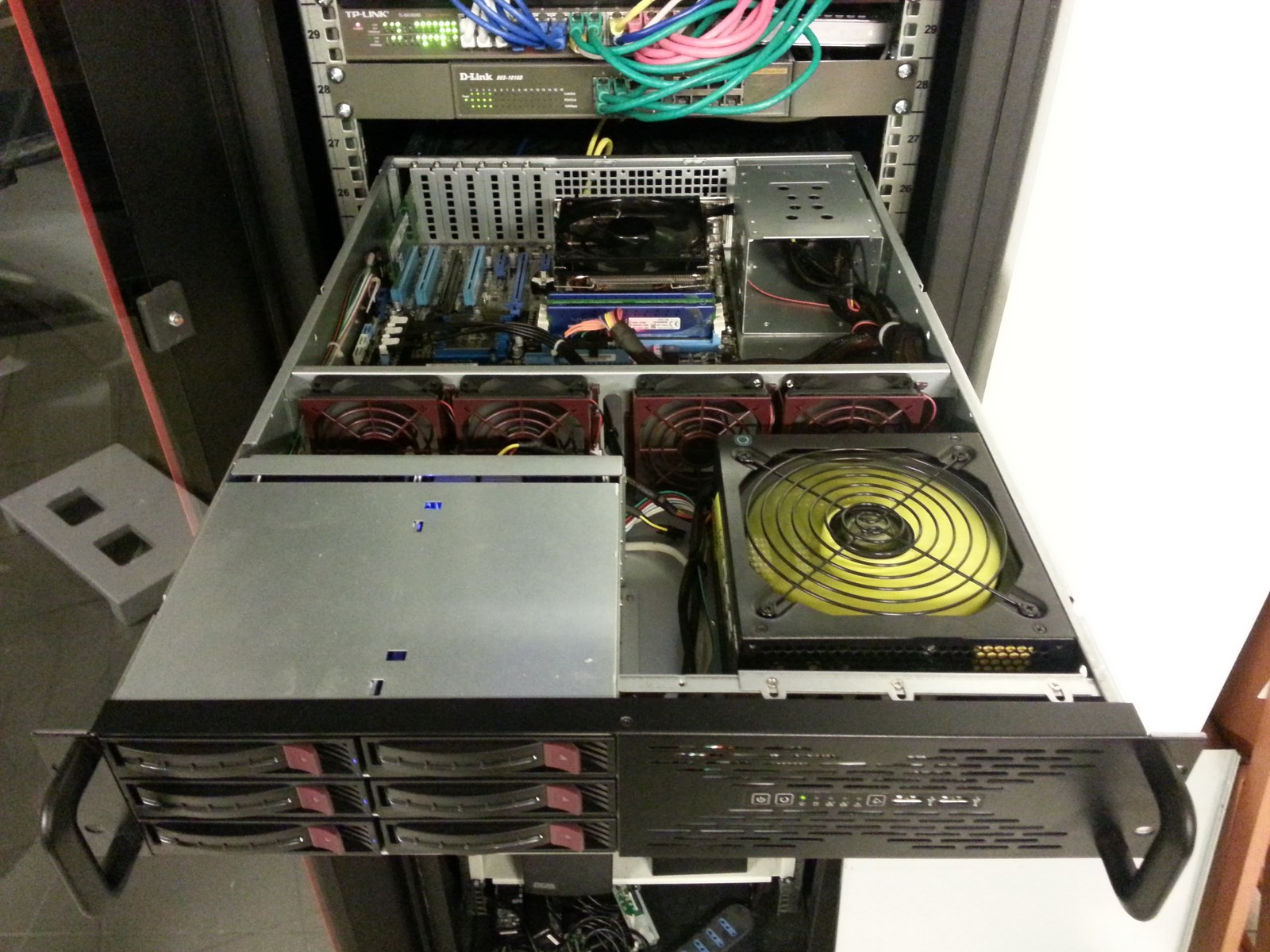

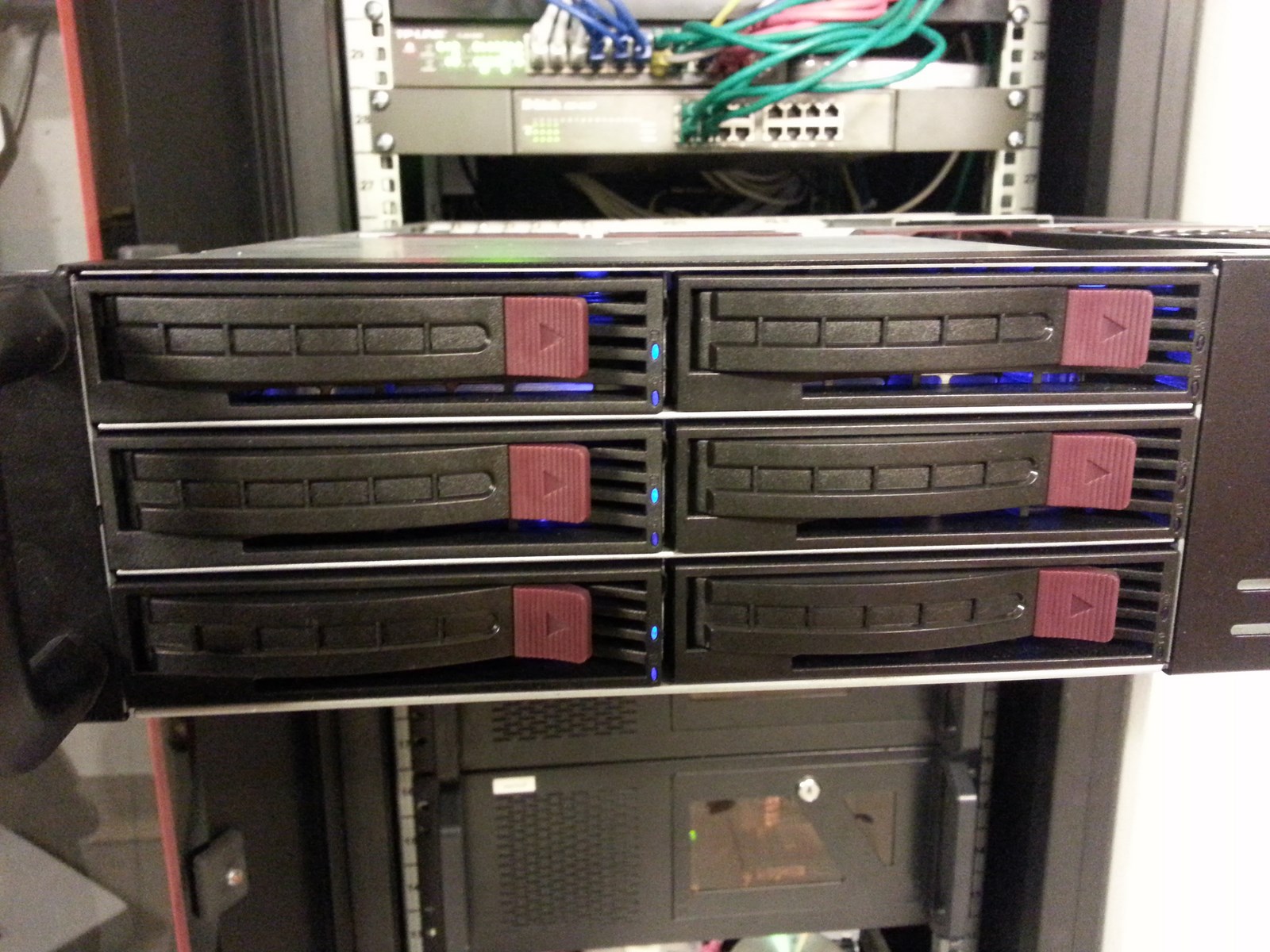

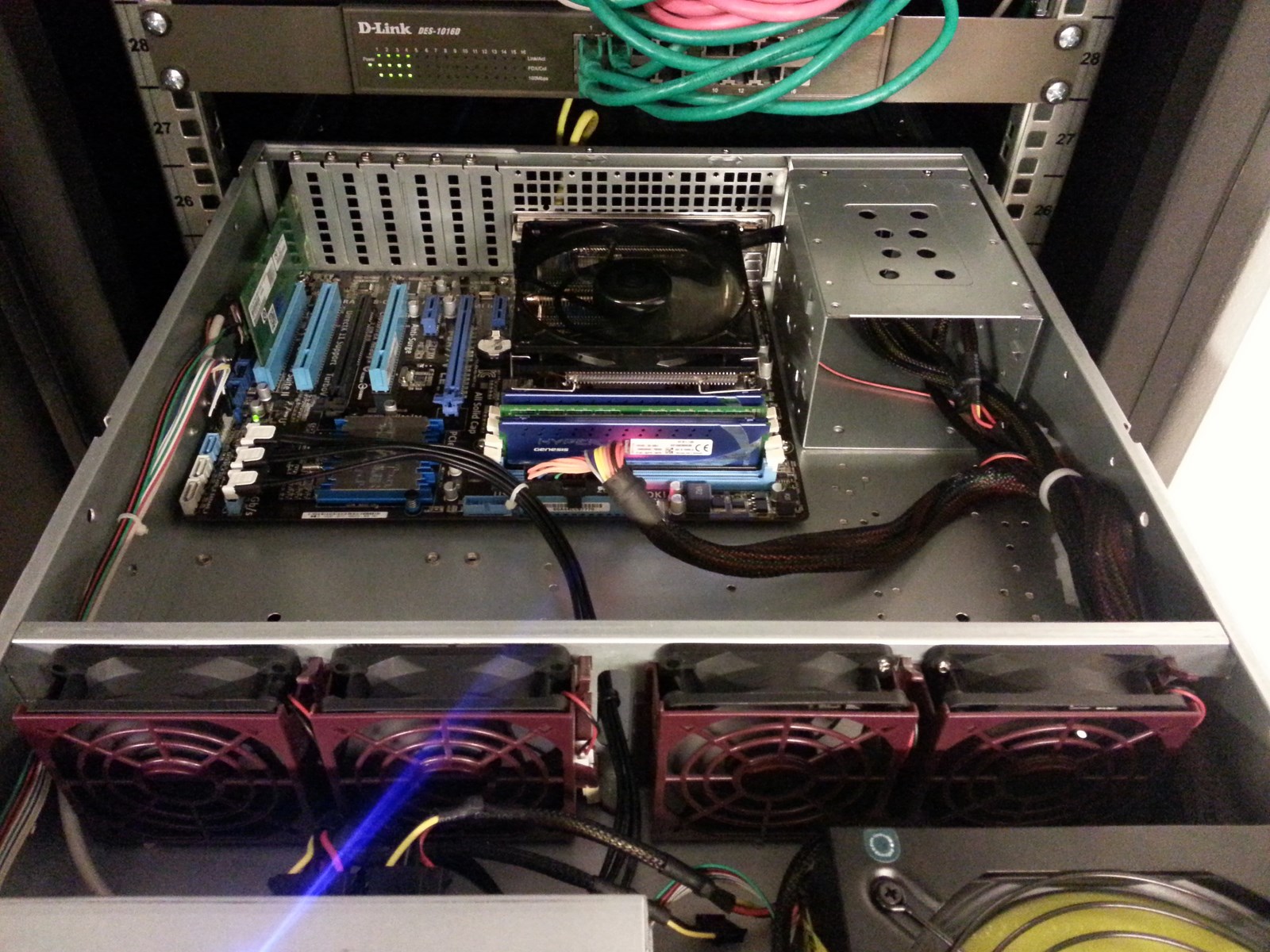

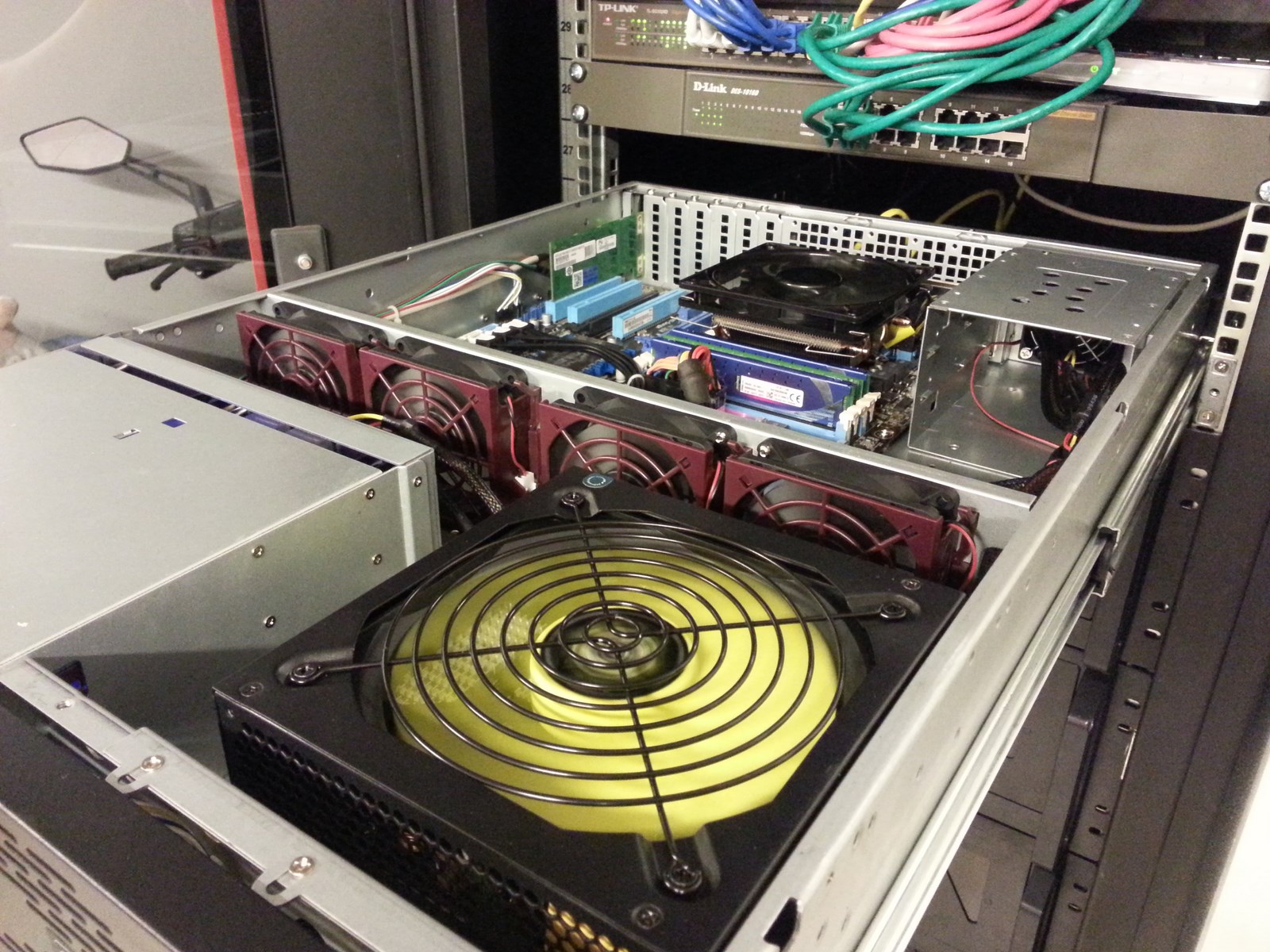

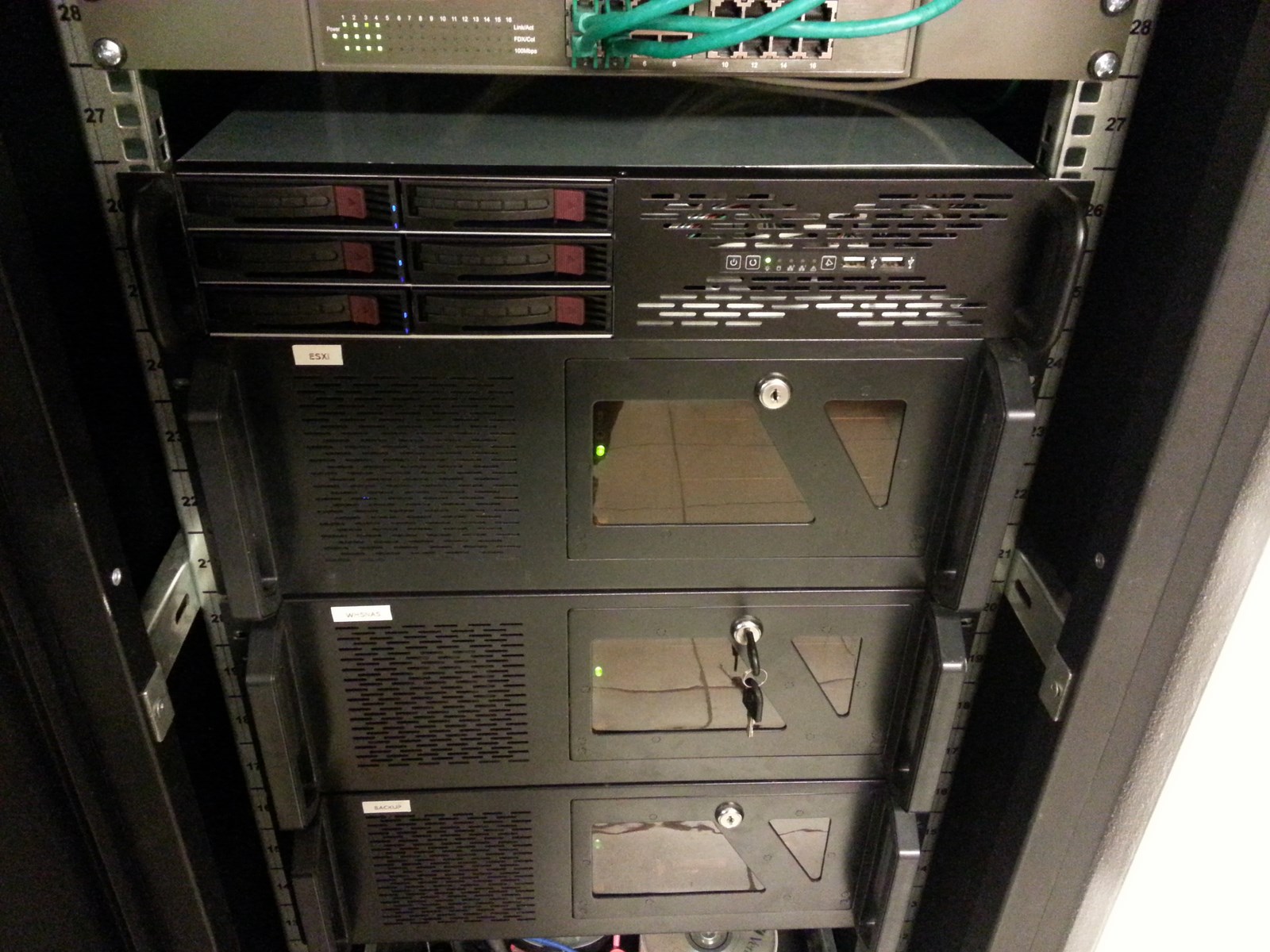

This is the final result:

CameraZOOM-20130901222410571 (Copia) CameraZOOM-20130901222425077 (Copia) CameraZOOM-20130901222033261 (Copia) CameraZOOM-20130901222052664 (Copia) CameraZOOM-20130901222551192 (Copia) CameraZOOM-20130901222607971 (Copia)

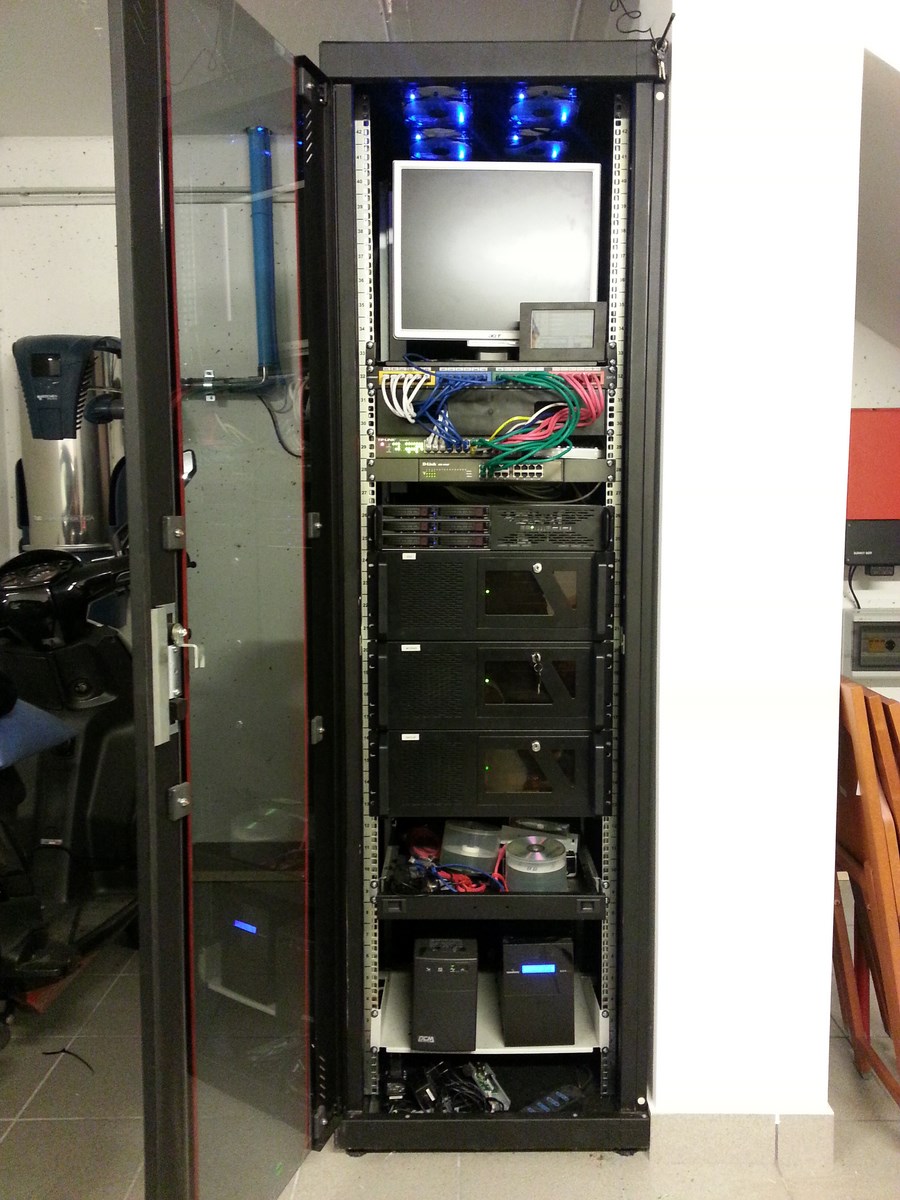

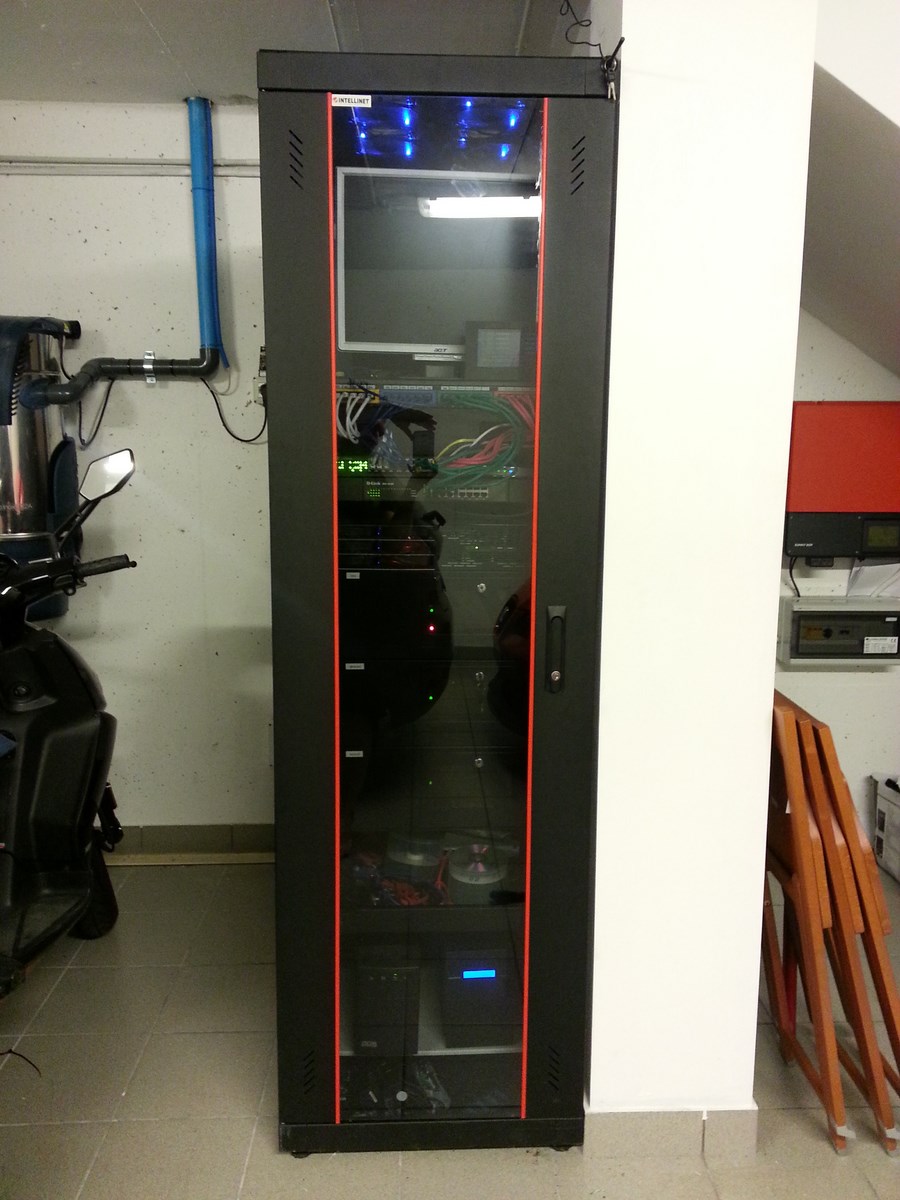

And finally, the cabinet completed:

CameraZOOM-20130901222239748 (Copia) CameraZOOM-20130901222156160 (Copia)
