New PCB circuit for EMONCMS

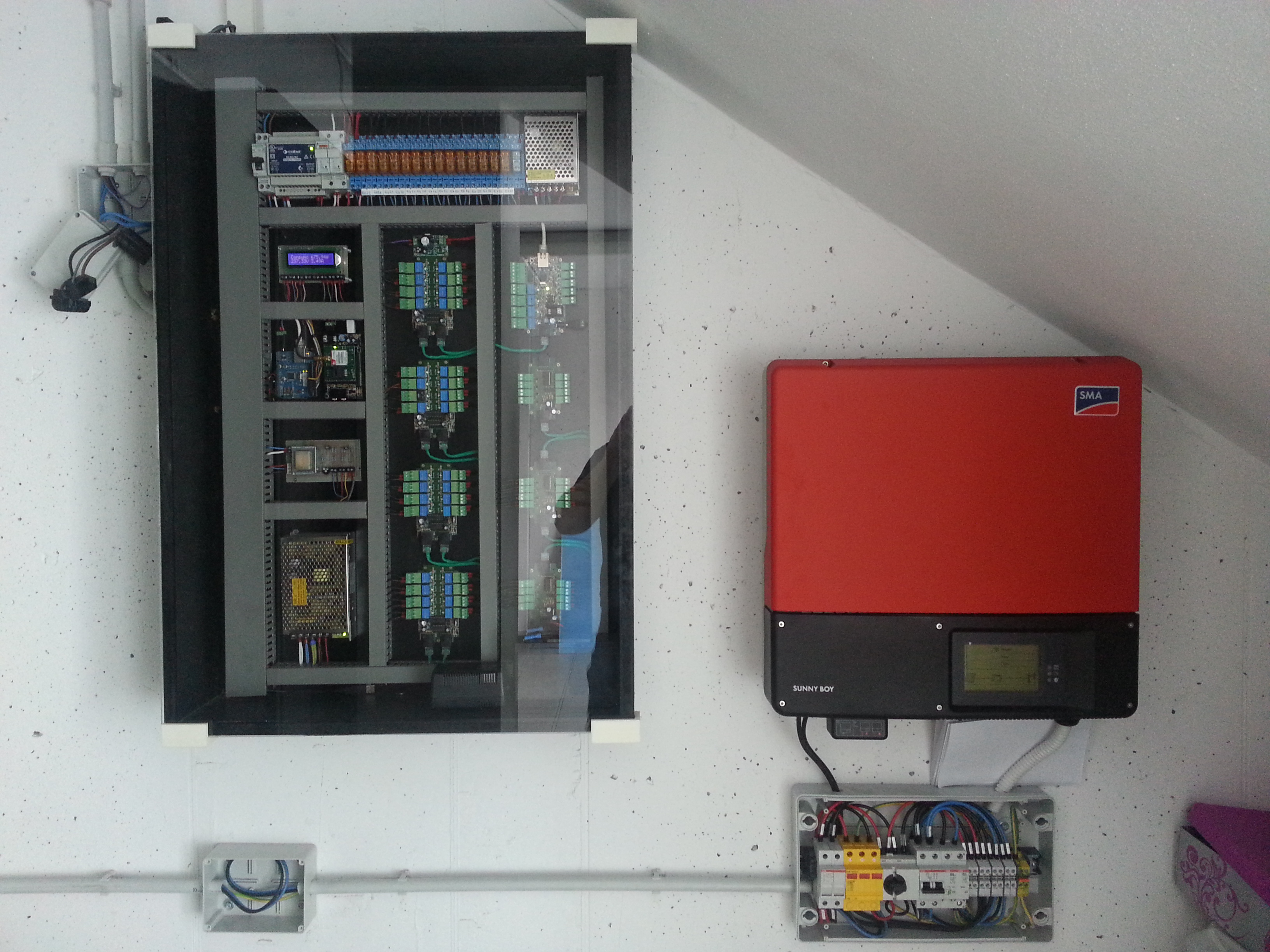

Some days ago, I’ve mounted a PV Solar on the roof of my home.

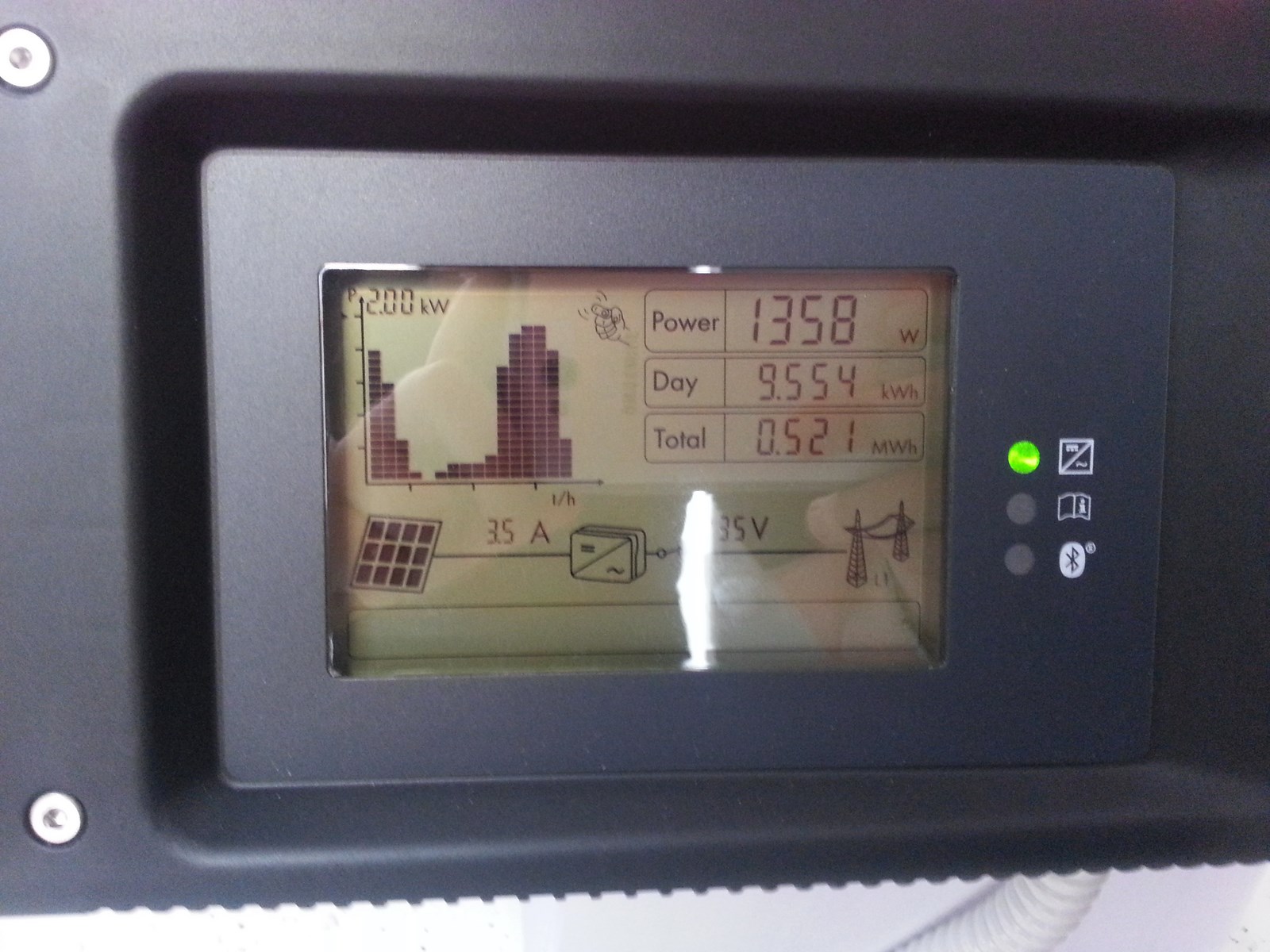

It’s a 2.66 KW of SunPower E20/333 with a SUNNYBOY inverter.

CameraZOOM-20130708122055269



Now, it’s time to upgrade my PCB circuit with a new one for measuring of 2 current sensors and 1 voltage sensor.

The circuit also controls one LCD display.

After about 1 hour of study with Eagle, it’s ready:
