New PCB circuit for EMONCMS

Some days ago, I’ve mounted a PV Solar on the roof of my home.

It’s a 2.66 KW of SunPower E20/333 with a SUNNYBOY inverter.

CameraZOOM-20130708122055269



Now, it’s time to upgrade my PCB circuit with a new one for measuring of 2 current sensors and 1 voltage sensor.

The circuit also controls one LCD display.

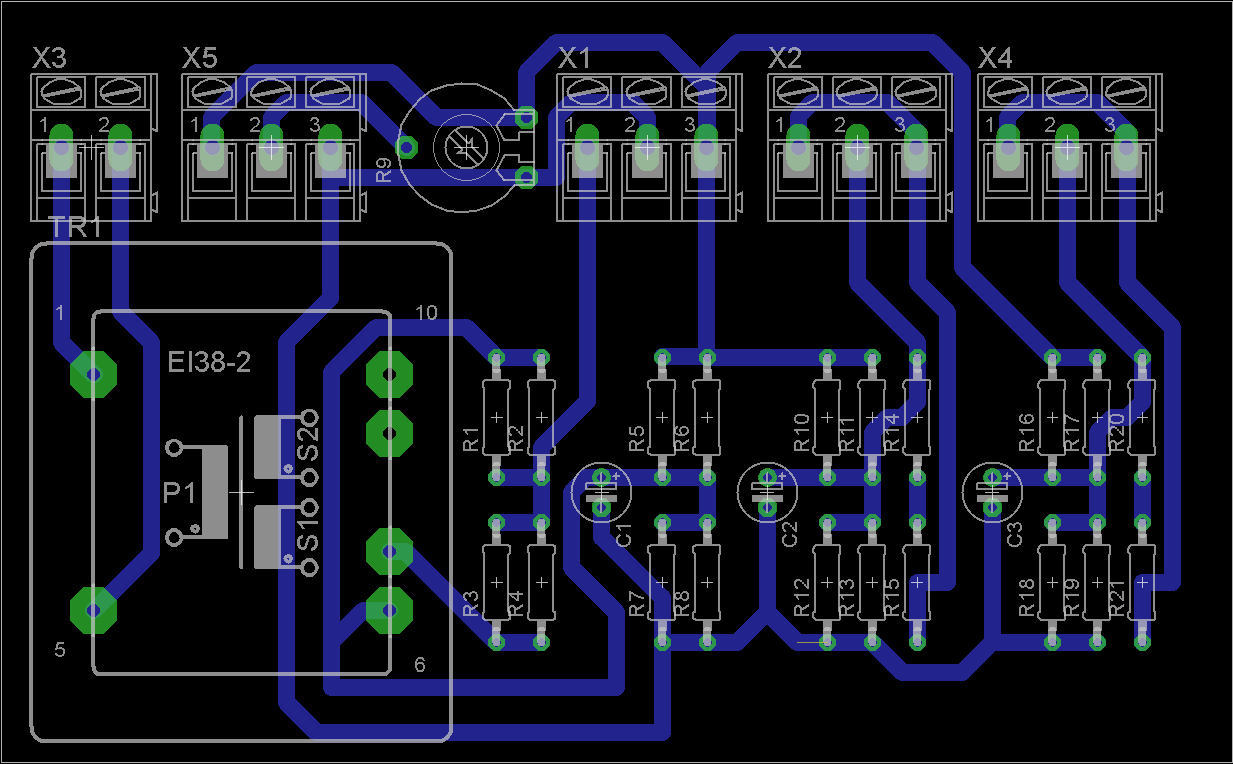

After about 1 hour of study with Eagle, it’s ready:

Analizzatore di rete doppio



One of the next days I’ll convert it to STL for print with POWERWASP 3D Printer.

Stay tuned!



EDIT: See here part 2 of this article!
